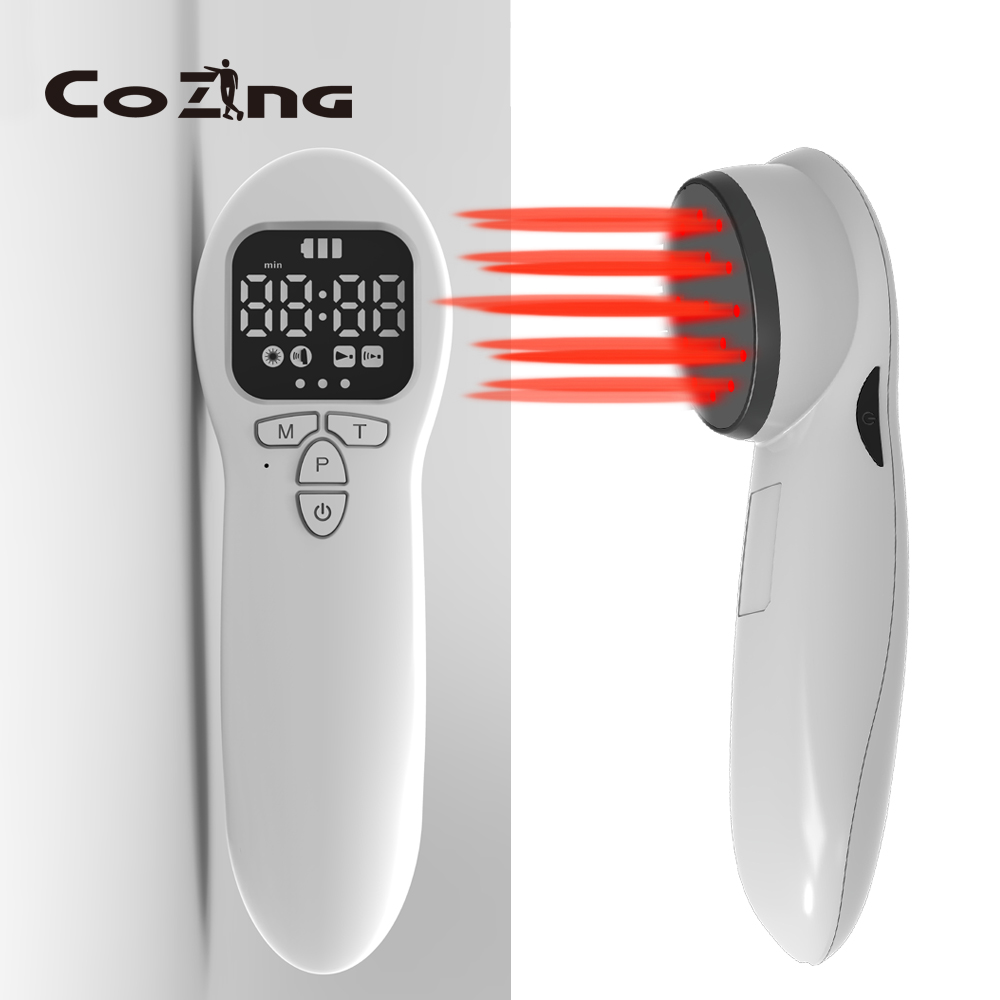

Portable Near Infrared Light Laser Therapy Device in Pain Relief Red Light Therapy for Humans and Dogs for Back, Knees, Muscles, Wrists, Ankles, Shoulders

Advantages

Type C charge port
Combine the 650nm+808nm
Safety switch to avoid the kids play it
Compact, easy to operate and carry
The big battery capacity, it is reach 5600mAh

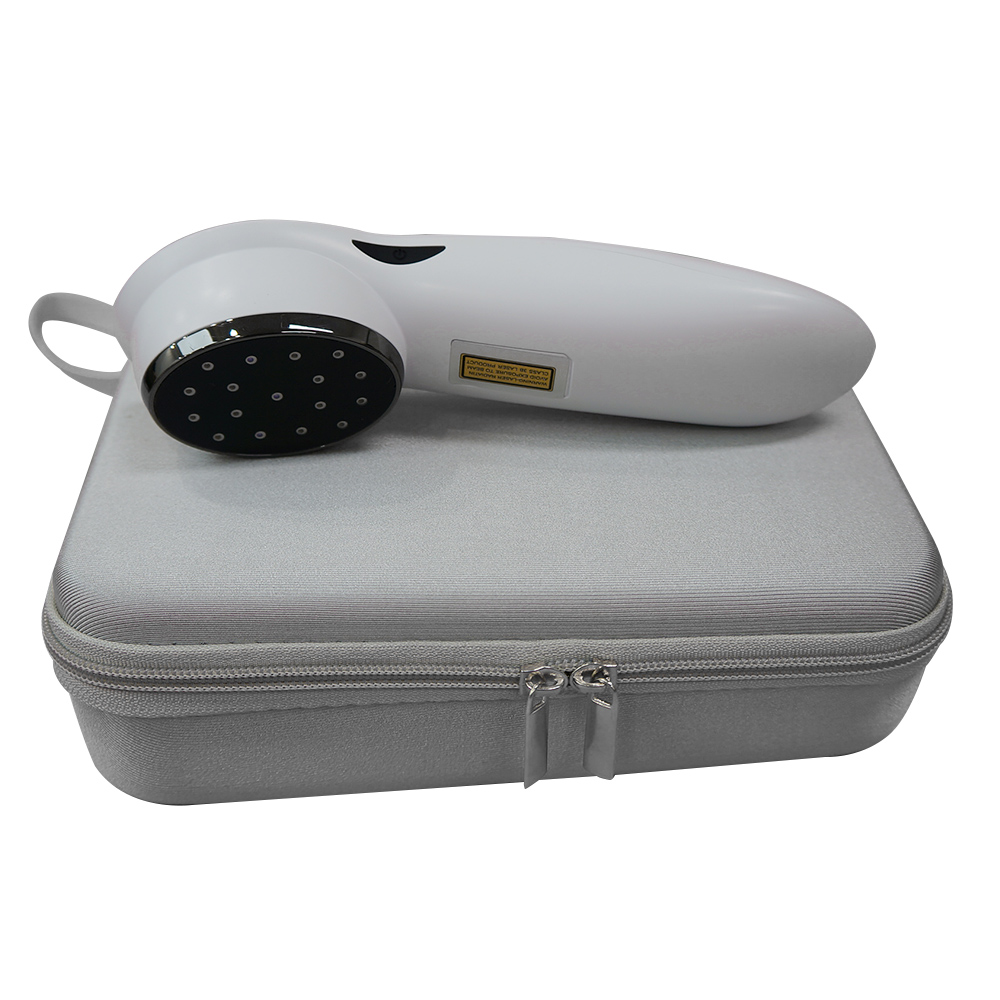

Portable, zipper case packing

Inquire Now Next Product

Product Overview

Product Description

Indications	Knee, Feet, Ankle, Shoulder, Back, Elbow, Hand, Joint & Muscle
	Arthritis
	Tennis Elbow
	Tailbone Inflammation
	Athletics System Injuries
	Soft Tissue Injuries
	Sports Injuries & Sprain
	Wound & Ulcer Acupuncture
	Diminish Inflammation

Portable Near Infrared Light Laser Therapy Device in Pain Relief Red Light Therapy for Humans and Dogs for Back, Knees, Muscles, Wrists, Ankles, Shoulders

Product Details

Technical Specification
Battery capacity	built-in lithium battery 5600mAh
Laser wavelength	808nm±20nm and 650nm±20nm
Terminal laser output	3 laser beams with 808nm, 150mw each laser beam, invisible output 14 laser beams with 650nm, 5mW each laser beam, visible output
Customized	can be customized as the LED light therapy or the comb,the different wavelength and power intensity is accepted,if you have the customized requirements, pls contact us directly.
Case Material	ABS
Lens Material	tempered glass
Working mode	Pulse and continuous mode adjusted by self
Time setting	15-60 minutes, 10 grades adjustable, each grade increase 5 minutes( 15mins, 20mins, 25mins, ..., 50mins, 55mins, 60mins )
Function	The device can work with power connection while battery dies
Battery charger	US/EU plug standard. 4 hours on a full charge.
Output power	170mW, 340mW, 510mW optional
Power adjustment	Three grade for adjustment

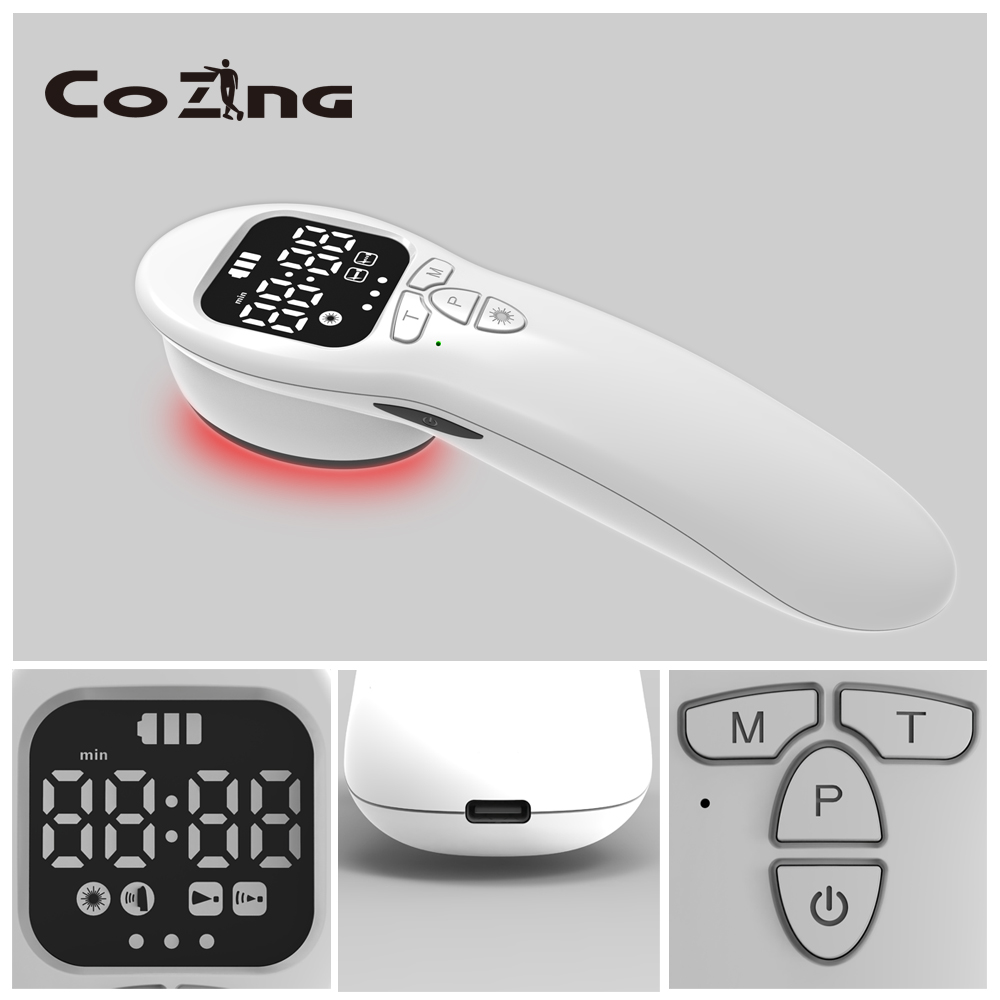

Display	Gray LCD display

Functions

Packaging & Delivery

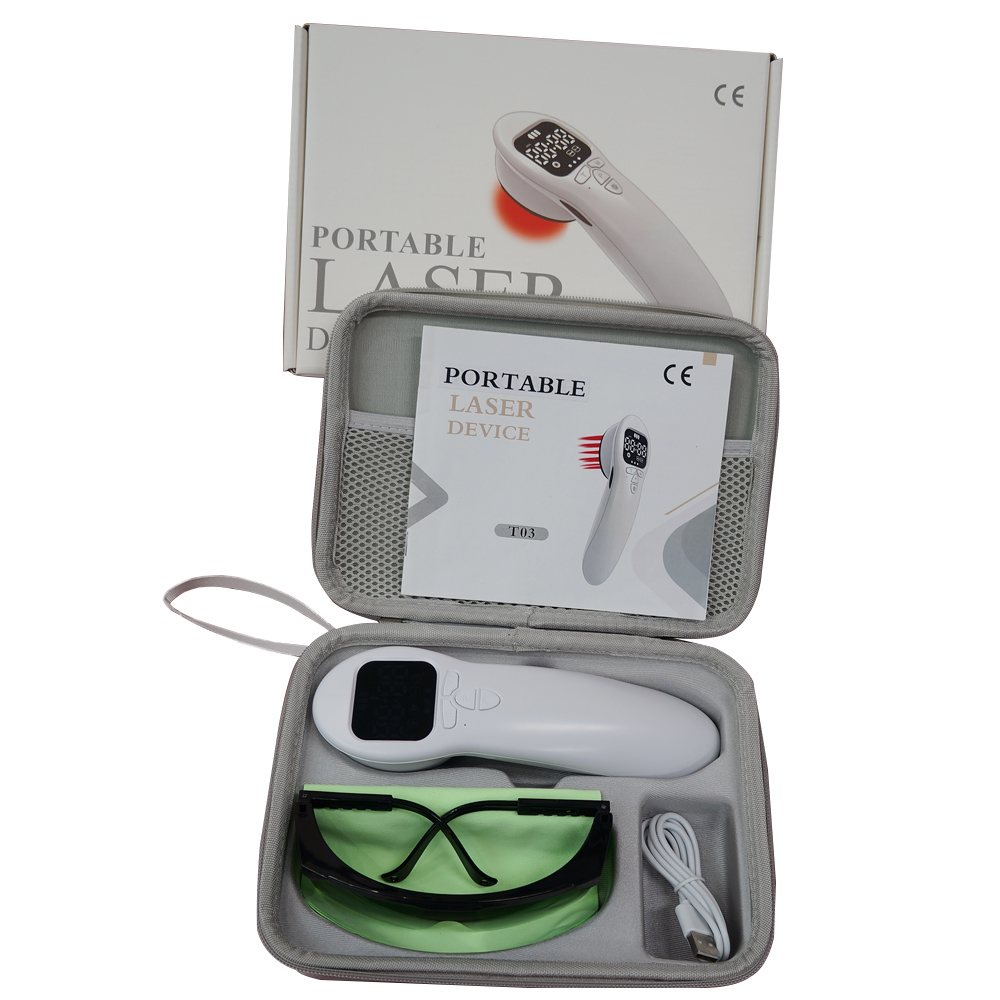

Package Includes:
1	1x Pain relief low-level cold laser device
2	1x USB charging cable
3	1x Zipper carry case
4	1x Manual
5	1x Warranty card
6	1x safety glasses with case

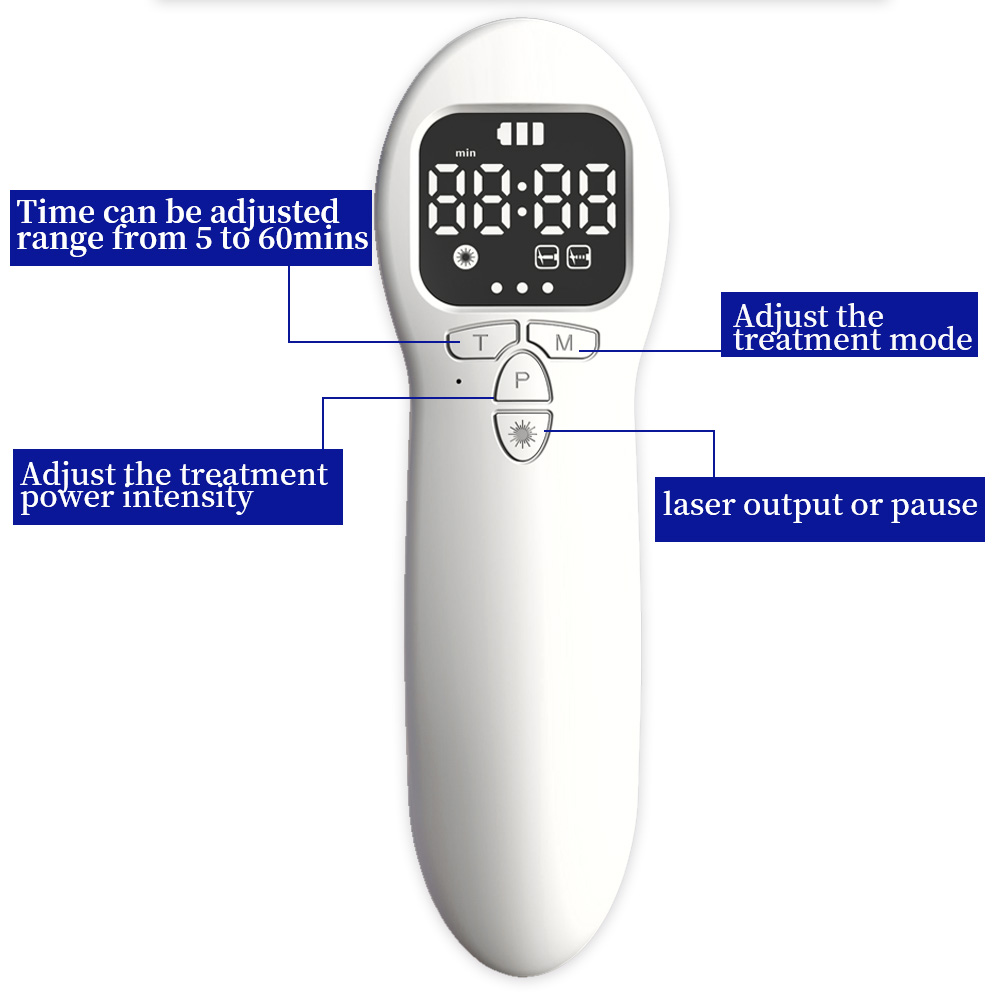

Easy To use

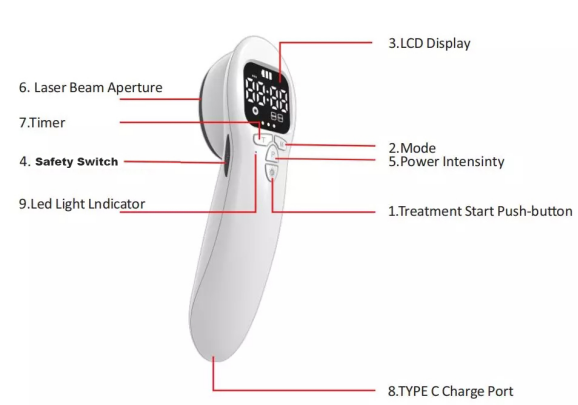

Demonstration of the activation of the laser beam after setting treatment time
Step1: Press the Safety switch (No.4), the led light will shinning.(No.9)
Step2: Press the P button to adjust the power intensity
Step3: Press the M button to select the treatment mode, pulse or continues mode
Step4: Press the "Treatment Start Button" (No.1) with one hand and make sure the light irradiate on the skin.

How to Use?
1st week	Start with the secondary power on pulse mode
2nd week	Adjust to maximum power on pulse mode
3rd week	You can start using it on maximum power on constant mode
Duration:	Please use 2-3 times a day for about 10-20 minutes. You can set 15x time settings, 15-60 minutes

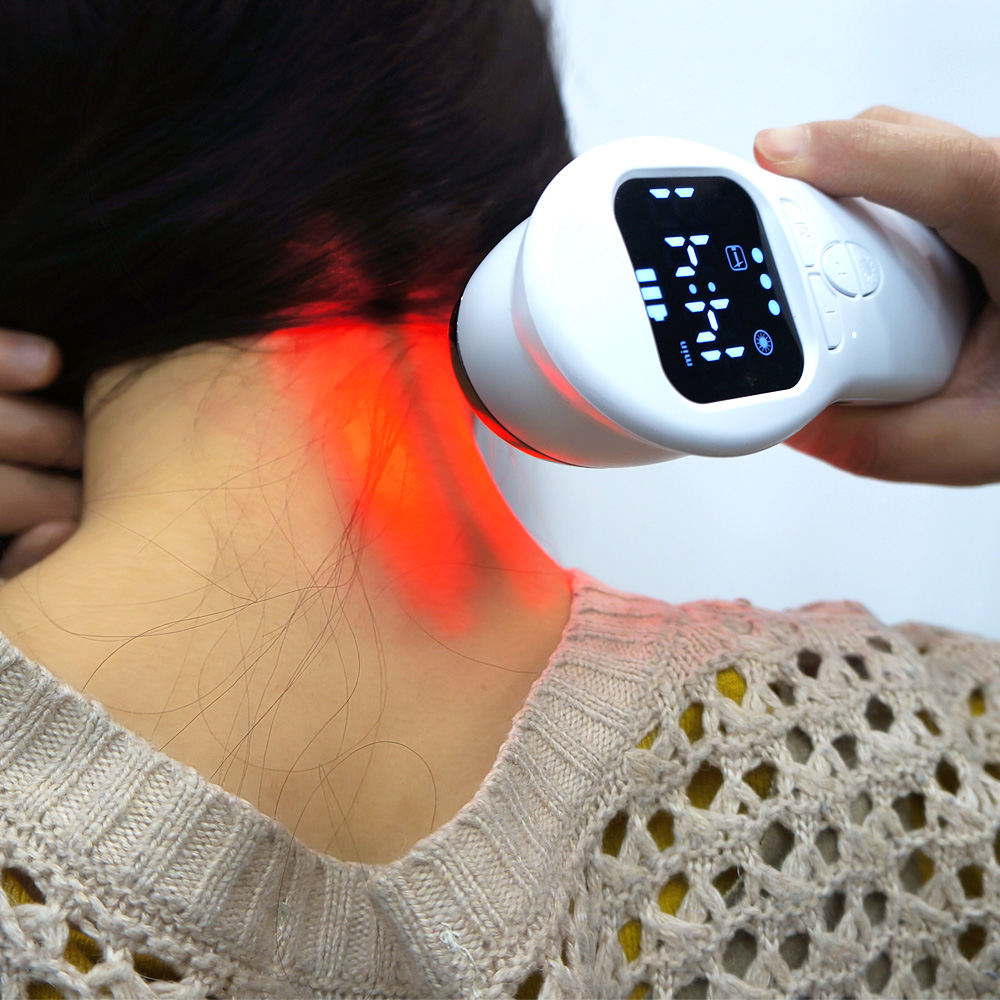

Distance from Skin:	Keep a little distance of 1-2 inches away from the skin
