Both tDCS and CES are non-invasive brain stimulation techniques that use weak electrical currents, but they differ fundamentally in current type, mechanism of action, and clinical applications.
Here is a core comparison:
Feature
tDCS (Transcranial Direct Current Stimulation)
CES (Cranial Electrotherapy Stimulation)
Core Principle
Uses a constant, unidirectional weak direct current to modulate the excitability of cortical neurons (anodal excitation / cathodal inhibition).
Uses pulsed, bidirectional microcurrents (often with complex waveforms) to regulate the brain's overall electrical rhythm.
Current Characteristics
Direct current with constant direction, typically 1-2 mA.
Pulsed current that periodically changes direction or outputs intermittently, typically in the microamp (μA) range (1 mA = 1000 μA).
Primary Action
Precise modulation of specific brain regions. Think of it as "activating" or "inhibiting" a target area to correct abnormal neural activity.
Global regulation of the brain's arousal state. The effect is broader and more diffuse, aimed at calming and stabilizing disordered brain waves.
Main Uses
Rehabilitation and treatment of specific dysfunctions, such as: post-stroke motor/language recovery, depression, cognitive impairment, Parkinson's disease, etc.
Treatment of functional disorders, with approved uses primarily for: insomnia, anxiety, depression, and pain relief.
Placement

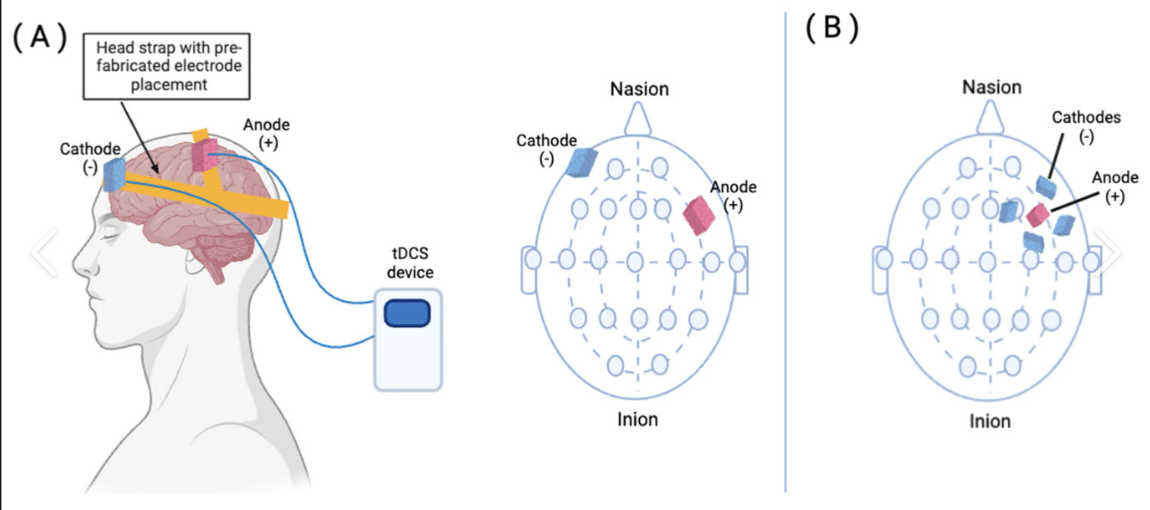

Requires precise localization of electrodes over the target brain region (e.g., motor cortex, prefrontal cortex).
No precise localization needed; electrodes are typically placed on the earlobes or temples for simplicity.
Directionality
Highly polarity-dependent; anodal and cathodal effects are opposite. Excitability increases under the anode and decreases under the cathode.
Weak polarity-dependence; the effect depends primarily on pulse waveform and frequency, not current direction.
